ONEPOLE PRO 1500 Pedestal for Chargestorm
ONEPOLE PRO 1500 is a 1.5 m powder-coated aluminium pedestal for mounting charging stations free-standing, for example in a car park.
Currently unavailable
CTEK-HLAK25For professionals

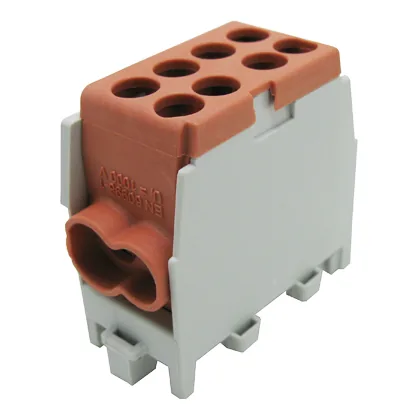

Pollmann HLAK 25-1/2 Branch Terminal for Chargestorm
Single-pole branch terminal for DIN rail, with two inputs up to 25 mm² and two outputs up to 16 mm², for aluminium or copper conductors.
Choose version
Currently unavailable
CTEK-HLAK25-BL
Professional? Apply for access to the business area.
Pick up at Síðumúli 1 or delivery with Pósturinn or Dropp.
Key features
Single-pole branch terminal for DIN rail, with two inputs up to 25 mm² and two outputs up to 16 mm², for aluminium or copper conductors. Used to branch the supply to several charging stations, for example inside the ONEPOLE PRO pedestal or a distribution board. The modules line up side by side, each 20 mm wide, with two screws per clamping point.
- Rated current: copper 130 A, solid aluminium 100 A (EN 60947-7)
- Insulation voltage 1000 V AC/DC
- Solid or stranded conductor 1.5 to 25 mm² in, 1.5 to 16 mm² out
- Torque 2.5 / 2.0 Nm
- Blue, brown or yellow/green
Technical information
| Product number | CTEK-HLAK25 |
|---|---|
| Category | EV charging accessories |
| Versions | Blue, Brown, Yellow/green |
| Manufacturer part number | HLAK 25-1/2 M2 |
| Dimensions | 40 × 20 × 44 mm |
| Mounting | DIN rail |
Source: manufacturer's technical data sheet.
